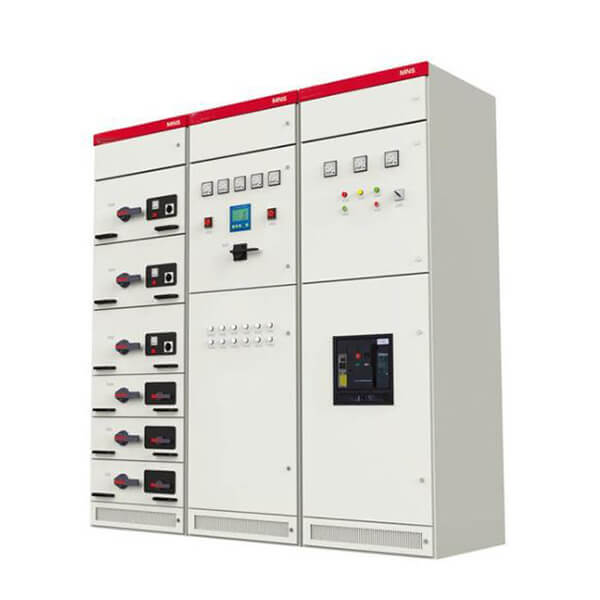

MNS Low-voltage Withdrawable Switchgear

MNS Low-voltage Withdrawable Switchgear
MNS Low-voltage Withdrawable Switchgear MNS Low-voltage Withdrawable Switchgear

PRODUCT DESCRIPTION

MNS is a modular, multi-functional low-voltage distribution cabinet. It is used in all the low-voltage systems in need of high reliable fields in metallurgy, petroleum, chemical, industrial and mining enterprises and infrastructure areas: power distribution and motor control system.

The cabinet structure adopted by MNS is highly flexible. According to the needs of customers or different applicable occasions, the cabinet can be installed with a variety of models and specifications of components; According to different electrical equipment, a variety of types of feeder units can be installed in the same row of cabinet or the same cabinet. For example: feed circuit and motor control circuit can be mixed together. MNS is a full series of low-volage switchgear, and can meet your all-round demand, applicable to all low-voltage system below 6300A.

MNS can provide a high level of reliability and security; user-friendly design, strengthens the protection required by personal and equipment security, MNS is a fully assembled structure, whose unique profile structure, connection methods and the compatibility of various components can meet the harsh requirements on construction period and power supply continuity. Carried standards: IEC60349, GB7251.12-2013.

Model and Meaning

Box Body Diagram

Installation Dimension

Fixed Cabinet

Width Depth a b Remarks
1000,800,600 600*,800,1000 W-120 D-120
400* 800,1000 W-120 D-120

Drawer Cabinet



Width Depth a b Remarks
1000,800 600*,800,1000 W-120 D-120 Front Outgoing Line
600*,800 800,1000 W-120 D-120 Back Outgoing Line

Fixed Separation Cabinet



Width Depth a b Remarks
1000,900 600*,800,1000 W-120 D-120 Front Outgoing Line
600 800,1000 W-120 D-120 Back Outgoing Line
