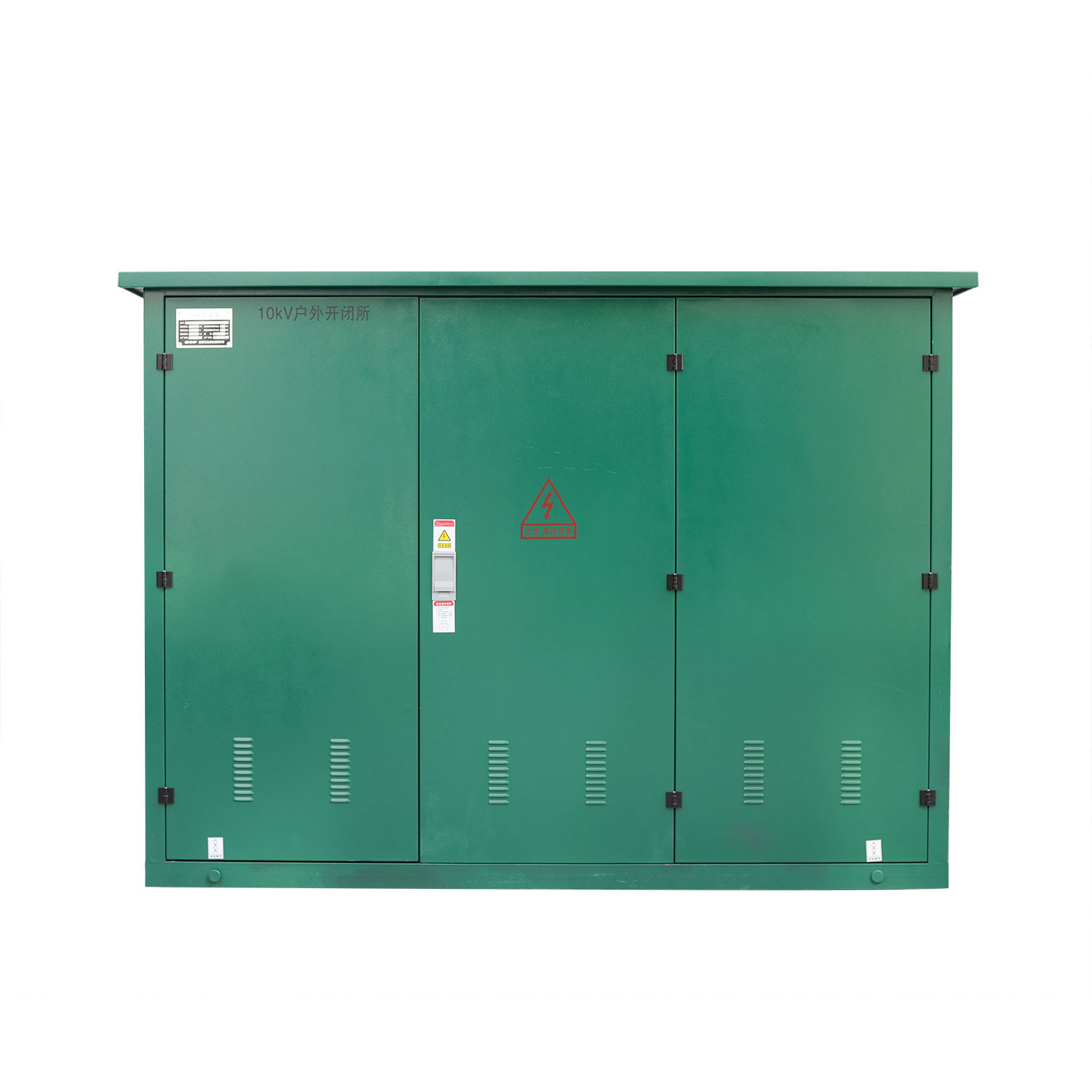

XGW口-12 Outdoor ring-network switching station (cable branch box)

XGW口-12 Outdoor ring-network switching station (cable branch box)
XGW口-12 Outdoor ring-network switching station (cable branch box) XGW口-12 Outdoor ring-network switching station (cable branch box) XGW口-12 Outdoor ring-network switching station (cable branch box)

Functions And Features

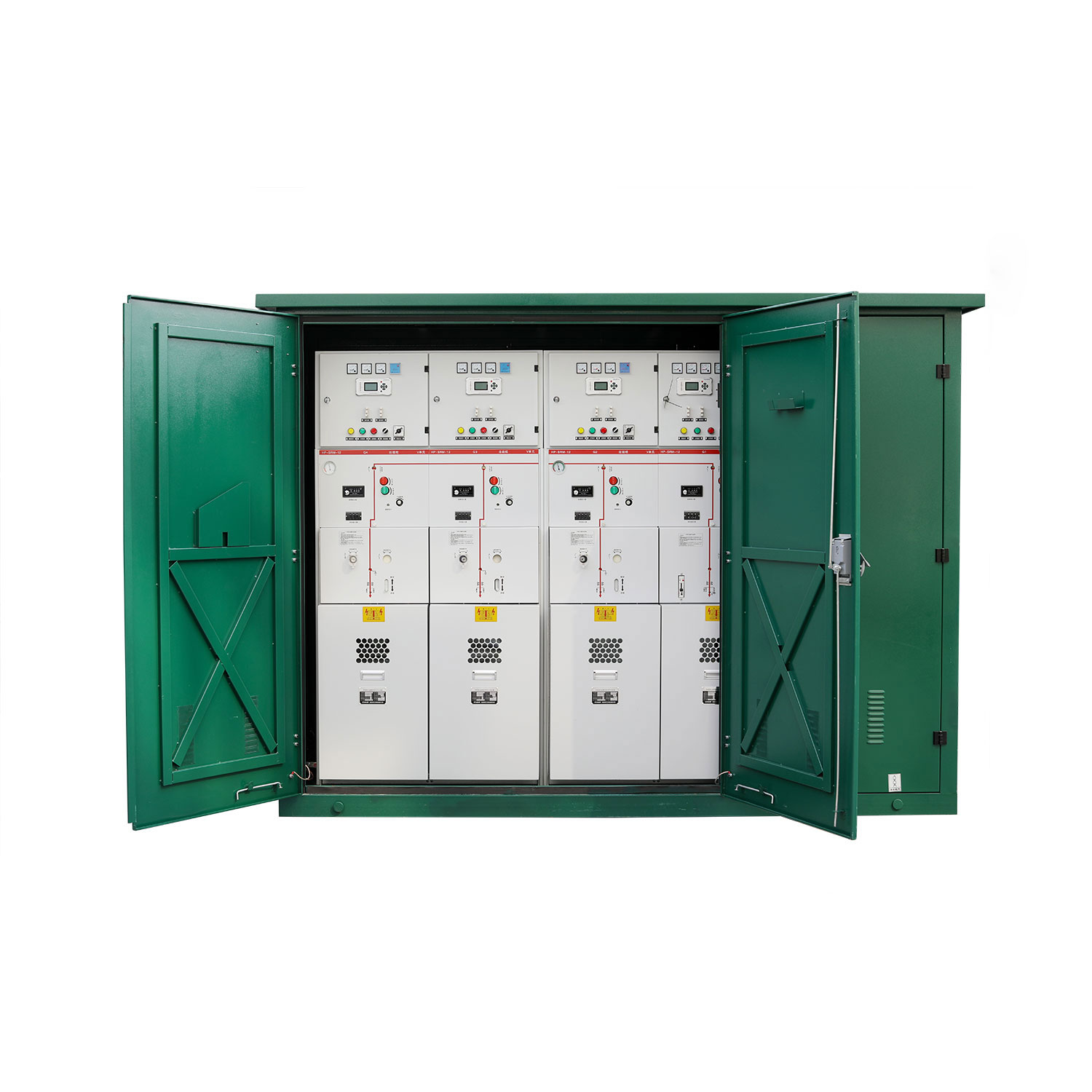

It is made of prefabricated charged removable silicon rubber cable, fully sealed, fully insulated, maintenance-free, and can reliably ensure personal safety. The structure is small and beautiful, in stainless steel double-layer box, with service life of more than 20 years.

Without affecting the operation of the main network, it achieves regional outage repair, and reduces the scope of power outages; It can be equipped with one or more SF6 load switches. The wiring method is flexible and diverse, the branches can be up to 8 loop; Optional arrester, short circuit fault indicator, current limiting fuse, meet the various requirements of users.

Model And Meaning

Technical Parameter

No. Name Parameter No. Name Parameter
1 Rated voltage 12kV 7 Rated short time withstand current 25kA/4S
2 Rated current 630A 8 Rated peak withstand current 50kA
3 P.F.withstand voltage(phase to earth) 42kVlmin 9 Rated breaking capacity current 45A
4 Lightning impulse voltage 75kV 10 Rated breaking inductive current 16A
5 Rated breaking current 630A 11 Full load breaking times >100
6 Rated short circuit breaking current(peak) 50kA 12 Operating times of sub-closing machine 2000 2000

Typical Wiring Program

Outline Diagram

XGW口-12 Common Schemas Example
