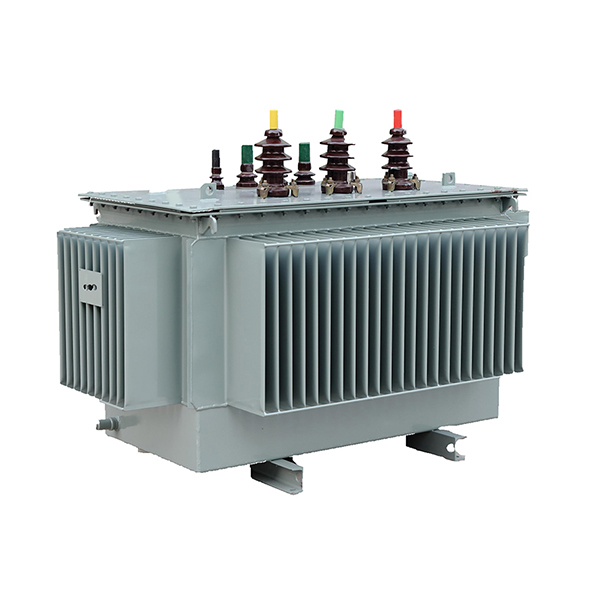

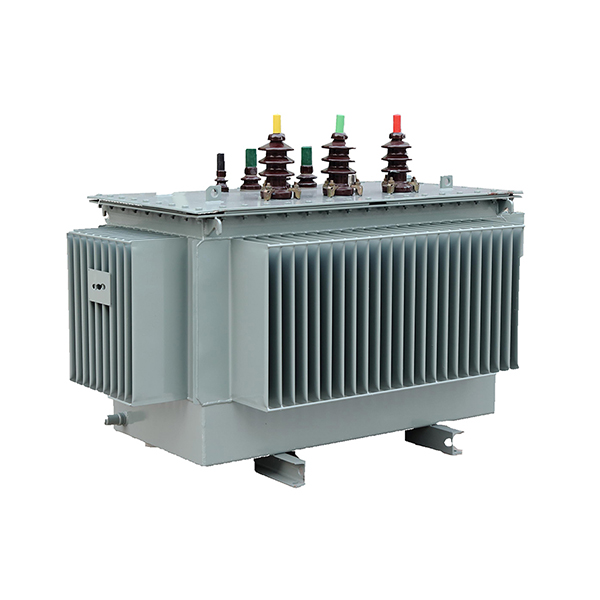

S11-M Series Three-phase Double-winding 20kv Distribution Transformers With Off-circuit Tap Changer
PRODUCT OVERVIEW
It adopts advanced electromagnetic design software, and meets IEC60076, GB1094, GB/T6451, GB/T25289-2010 standards.
Without such device like conservator, air brealher… So it ensures
PRODUCT OVERVIEW
It adopts advanced electromagnetic design software, and meets IEC60076, GB1094, GB/T6451, GB/T25289-2010 standards.
Without such device like conservator, air brealher… So it ensures that the transformer oil is not in contact with air, improving the anti-oxidation capacity of the transformer oil and delaying its aging. The core is made of high quality cold-rolled grain-oriented silicon steel sheet, with laminated structure miter joint, so as to reduce the no-load losses and no-load current. The tank is a corrugated type, the corrugated fins can swell and shrink with the change of transformer oil, so that the prassure can be maintained inside the tank, increase its reliability and anti-corrosion capability The coil of distribution transformer, wound by high intensity enameled wrapped conductors with good Ampere-Turn balance and reasonable insulation struc-ture, has a strong short-circuit withstand capacity. The distribution transformer adopts the-free-untanking structure with sealing material parts made of high quality acrylic rubber, it can effectively prevent against light-aging and heat-aging.
S11-M Series Three-phase Double-winding 20kv Distribution Transformers With Off-circuit Tap Changer
| Rated capacity(kVA) | Voltage ratio(kV) | Connection Symbol | Loss(W) | No-load current(%) | lmpedance(%) | Weight(kg) | Outline Dimension(mm) | Gauge(mm) | |||||
| H.V | L.V | No-load Loss | Full-load Loss | Oil weight | Total Weight | L | W | H | |||||
| 30 |
20 ±5% or ±2 x2.5% |
0.4 |
Yyn0 Dyn11 |
100 | 690/660 | 2.1 | 5.5 | 100 | 360 | 800 | 680 | 950 | 400x400 |
| 50 | 130 | 1010/960 | 2 | 120 | 410 | 850 | 700 | 970 | 400x400 | ||||
| 63 | 150 | 1200/1150 | 1.9 | 140 | 480 | 880 | 710 | 1000 | 400x400 | ||||
| 80 | 180 | 1440/1370 | 1.8 | 150 | 540 | 900 | 720 | 1030 | 400x400 | ||||
| 100 | 200 | 1730/1650 | 1.6 | 170 | 615 | 950 | 750 | 1050 | 400x400 | ||||
| 125 | 240 | 1730/1650 | 1.5 | 180 | 710 | 950 | 900 | 1070 | 550x550 | ||||
| 160 | 290 | 1730/1650 | 1.4 | 195 | 790 | 100 | 900 | 1100 | 550x550 | ||||
| 200 | 340 | 3000/2860 | 1.3 | 220 | 910 | 1050 | 930 | 1120 | 550x550 | ||||
| 250 | 400 | 3520/3350 | 1.2 | 245 | 1040 | 1100 | 950 | 1150 | 550x550 | ||||
| 315 | 480 | 4210/4010 | 1.1 | 280 | 1185 | 1450 | 950 | 1200 | 550x550 | ||||
| 400 | 570 | 4970/4730 | 1 | 300 | 1370 | 1500 | 1000 | 1250 | 660x660 | ||||
| 500 | 680 | 5940/5660 | 1 | 350 | 1620 | 1550 | 1050 | 1320 | 660x660 | ||||
| 630 | 810 | 6820 | 0.9 | 6 | 420 | 2085 | 1650 | 1100 | 1350 | 660x660 | |||
| 800 | 980 | 8250 | 0.8 | 465 | 2400 | 1700 | 1200 | 1450 | 820x820 | ||||
| 1000 | 1150 | 11330 | 0.7 | 580 | 2880 | 1900 | 1350 | 1500 | 820x820 | ||||
| 1250 | 1380 | 13200 | 0.7 | 640 | 3300 | 1950 | 1380 | 1550 | 820x820 | ||||
| 1600 | 1660 | 15950 | 0.6 | 770 | 4000 | 2050 | 1450 | 1600 | 820x820 | ||||
