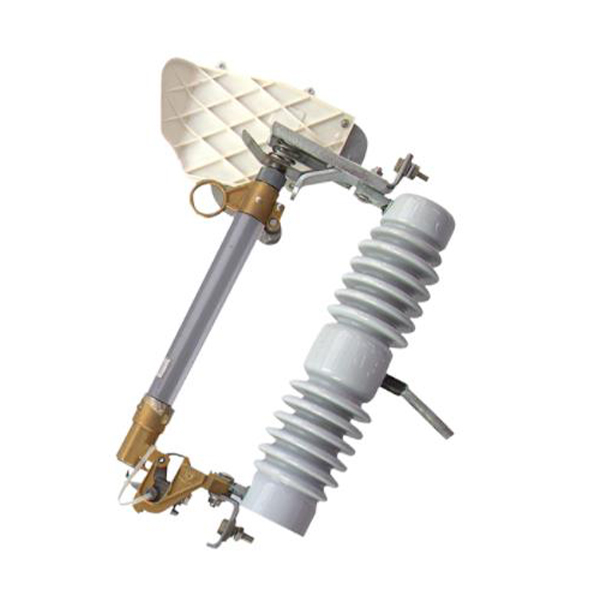

33kV High Voltage Composite Polymer Insulator Fuse Cutouts

Application The primary purpose of any Fuse cutouts is to provide protection to the lines of your system and the various apparatus on those lines such as transformers and capacitor banks. Fuse cutout

Application

The primary purpose of any Fuse cutouts is to provide protection to the lines of your system and the various apparatus on those lines such as transformers and capacitor banks. Fuse cutouts provide reliable protection from low-level overloads that just melt the fuse link, intermediate faults, and very high faults, through maximum intermupting capacity.

Model and Meaning

33kV High Voltage Composite Polymer Insulator Fuse Cutouts

33kV High Voltage Composite Polymer Insulator Fuse Cutouts

33kV High Voltage Composite Polymer Insulator Fuse Cutouts

Type

Rated Voltage(KV)

Rated Current(A)

Breaking Current(A)

Impulse Voltage(A)

Power-frequency Withstand Voltage(KV)

Creepage Distance

HRW-12/100

12

100

10000

110

45

380

HRW-12/200

12

200

12000

110

45

380

HRW-24/100

24

100

6000

150

65

620

HRW-24/200

24

200

8000

150

65

620

HRW-33/100

33

100

6000

185

75

1100

HRW-33/200

33

200

8000

185

75

1100

33kV High Voltage Composite Polymer Insulator Fuse Cutouts

33kV High Voltage Composite Polymer Insulator Fuse Cutouts
